What Is a Braided Flexible Hose?

A braided flexible hose generally consists of a corrugated metallic hose core surrounded by one or more layers of metallic wire braid. The corrugated hose provides flexibility, allowing the assembly to bend or move laterally, while the external braid provides reinforcement and contains the pressure thrust generated by internal pressure.

The braid serves as the primary structural element of the assembly. When the corrugated hose is pressurized, the pressure acting over its effective area generates a thrust, the same force a tied expansion joint must manage. The braid restrains that thrust and limits axial extension of the hose, performing a function similar to the tie rods on a tied metallic expansion joint.

When Braided Flexible Hose Can Be Preferred

For the right application, braided hose offers several practical advantages over a tied expansion joint.

• Simpler Construction – A braided hose generally consists of just the braid and weld collars that are faster to manufacture, install, inspect, and replace.
• Compact Installation – Flexible hose assemblies are well suited to installations where space is genuinely tight. Aerospace piping is a good example: there’s often no room for tie-rod hardware and its required movement envelope, so a properly routed flexible hose delivers the needed movement in a far more compact arrangement.
• Vibration Isolation – One of the most common reasons for selecting a braided flexible hose is to isolate equipment vibration. Rotating and reciprocating equipment like pumps, compressors, and turbines transmits vibration into connected piping. A properly designed flexible hose absorbs that movement and reduces how much mechanical vibration reaches the rest of the system.
• Small Lateral Movements – When only a relatively small amount of lateral movement is required, a flexible hose is often more practical than a tied expansion joint. The hose accommodates movement through bending distributed over its flexible length. Increasing the available length and choosing the right installation configuration let it accommodate movement without overstressing the corrugations. For larger movements, an engineered expansion joint remains the more controlled, compact solution.
• Installation Misalignment – A flexible hose can absorb limited misalignment between equipment and piping, useful when field conditions make perfect alignment difficult. It should not, however, be used to correct severe misalignment or poor installation practice, since permanent misalignment consumes part of the hose’s available flexibility and can shorten service life.
• Easier Replacement – Flexible hose assemblies are typically straightforward to remove and replace, which is valuable where the flexible connection is a maintainable component or where equipment is periodically pulled for service.

Getting the Flexible Length Right

A common mistake in flexible hose design is making the hose too short. Flexible hose accommodates lateral movement through bending, not by stretching axially. If the hose is too short, its bending radius becomes tighter, and the corrugations see higher stress, which can significantly reduce fatigue life. A longer flexible length spreads that movement over a larger section of hose. The same movement-calculation discipline applies to expansion joints; see our buyer’s roadmap for calculating movement requirements for the equivalent process on the tied-joint side.

Installation Considerations

Even a correctly designed flexible hose can fail prematurely if installed incorrectly. The hose should be installed so that movement occurs in the intended plane without introducing excessive torsion. Torsion is especially damaging because corrugated hose is designed to flex through bending, not twisting.

Pressure Thrust and Piping Loads

One of the major advantages of both braided hose and tied expansion joints is their ability to contain pressure thrust. In an untied bellows expansion joint, internal pressure creates thrust that must normally be resisted by anchors or other structural components. A tied expansion joint uses tie rods to contain that thrust within the assembly; a braided hose’s braid does the same job, restraining axial extension of the corrugated core and transferring pressure-induced forces between the end fittings. Thrust restraint doesn’t mean zero load on connected equipment; however, hose stiffness, bending forces, weight, dynamic loads, and installation geometry all still need to be considered and may still call for properly sized pipe supports nearby.

Typical Applications

Braided flexible hose assemblies are commonly used for:

• Pump suction and discharge connections
• Compressor connections
• Vibration isolation
• General equipment connections
• Skid piping
• Small thermal movements
• Limited lateral movement
• Piping misalignment
• Connections where equipment must be periodically removed
• Space-constrained installations  –  aerospace piping is a prime example, where a conventional expansion joint would be unnecessarily complex

These assemblies show up across data centers, oil & gas, petrochemical, and other process industries; which product gets specified usually comes down to available space and required movement rather than the industry itself.

Design Standards

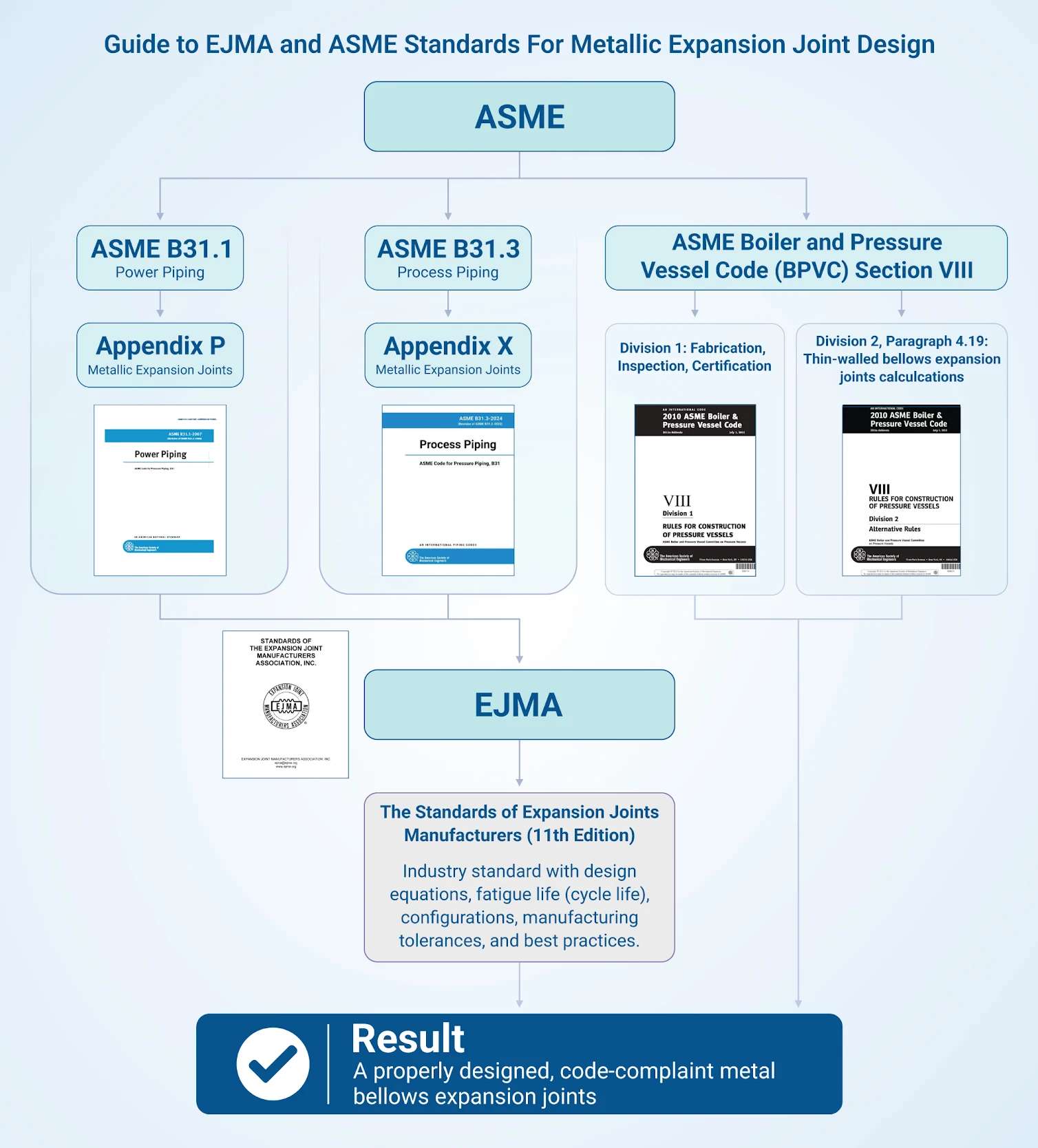

Flexible metal hose assemblies are designed and manufactured using recognized industry practices for metallic hoses. Organizations such as NAHAD provide guidance on fabrication, testing, installation, and application. The piping system itself may also fall under an applicable piping code, such as ASME B31.1 or ASME B31.3. This differs from metallic bellows expansion joints, which are commonly designed using EJMA methodology alongside applicable piping or pressure design requirements. One practical consequence: braided hose doesn’t have an equivalent standard for estimating service life the way EJMA-designed tie rods do, so inspection and replacement intervals are typically set by application experience rather than a published life calculation.

Frequently Asked Questions

Does a braided flexible hose allow the same movement as a Tied Expansion joint?
This is a common misconception worth clearing up: neither a braided flexible hose nor a tied expansion joint accommodates axial (straight-line stretching) movement; both are restrained against that by design. What they allow is lateral and angular movement: the hose through bending along its flexible length, the tied joint through controlled bellows deflection.

How long does a braided flexible hose last compared to a tied expansion joint?
There’s no industry standard or code for calculating a braided hose’s expected life cycle the way EJMA methodology allows for tied, engineered expansion joints. In practice, tie rods and bellows designed to EJMA guidelines are generally expected to outlast a braided hose in continuous service, so periodic inspection and a planned replacement interval are recommended for hose assemblies.

Which industries use braided flexible hose most?
It shows up across data centers, oil & gas, petrochemical, and general process industries, plus space-constrained fields like aerospace where there simply isn’t room for tie-rod hardware. The deciding factor is usually available space and required movement, not the industry itself.

Talk to a PTP Piping Specialist

Not sure whether your application calls for a braided flexible hose or a tied expansion joint? Schedule time with an engineer for a review, or explore our full range of expansion joint solutions to see tied, universal, hinged, and gimbal designs in detail.

Ready to move forward? Request a quote, and our engineering team will follow up with pricing and lead time for your application.

In a restrained expansion joint assembly, the hex nuts on a tied expansion joint are intentionally positioned with a measured gap between the nut and the lug. Customers frequently ask whether this clearance is necessary. The answer is yes – it is a critical design feature that allows the expansion joint to function as intended while protecting the bellows from excessive loads.

While “control rod” and “tie-rod” are sometimes used interchangeably in the expansion joint industry, they serve different functions. Tie-rods are meant to continuously restrain full pressure thrust and permit only lateral movement during normal operation (i.e, there’s no gap in between the rods and nuts). Control rods are meant to prevent over-extension or compression (i.e, there’s a gap in the rods and nuts),  and are designed to contain the full pressure thrust in case of an anchor failure.

This article explains the purpose of the clearance between the nuts and the lugs and how it is determined during design. We will also look at consequences for the piping system when it is altered in the field.

What Is the Nut and Lug Clearance?

An expansion joint is designed to absorb movement in a piping system. As the line heats up and cools down, the pipe expands and contracts, and the bellows compress and extend to absorb that movement, preventing it from transferring to the surrounding piping and equipment.

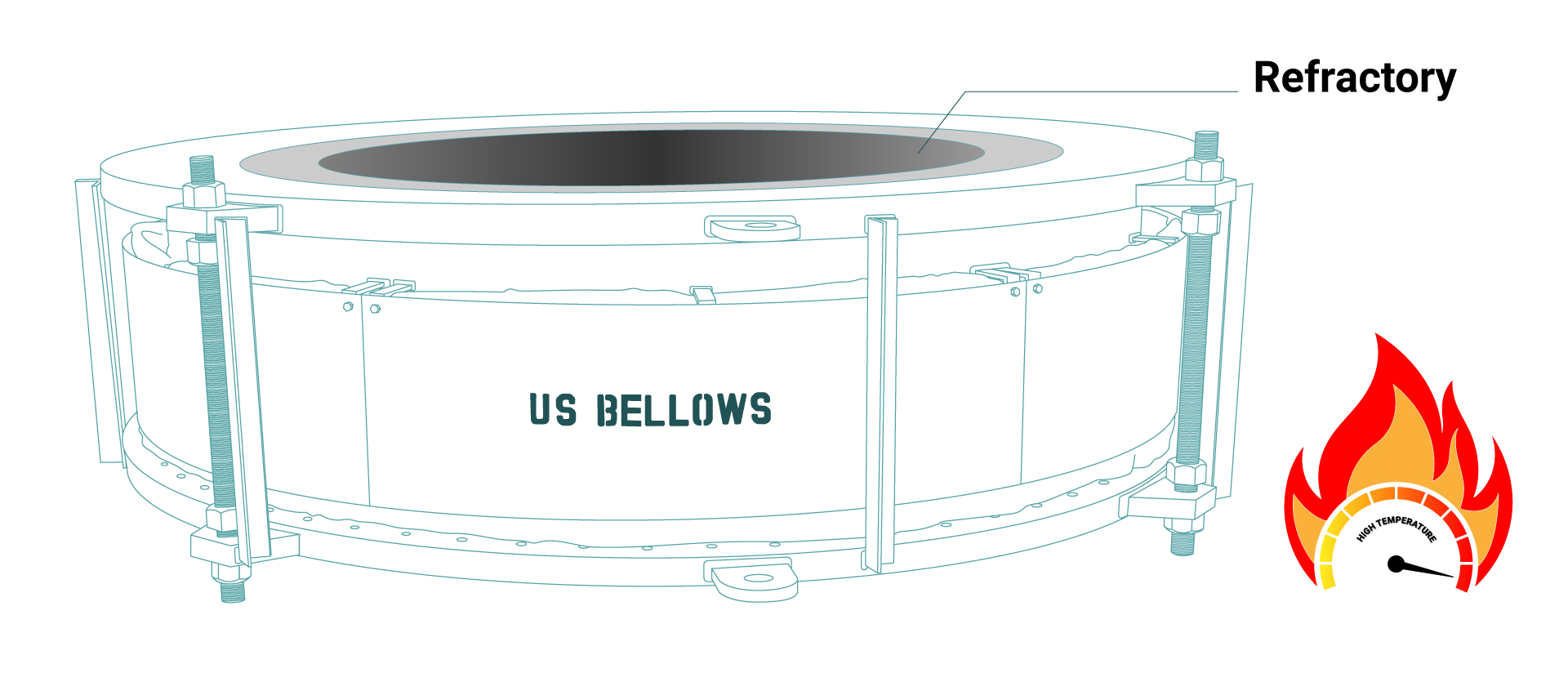

The tie rod assembly is the hardware that controls this movement (normally lateral movement). It consists of three components:

• Tie rods: Rods that span the joint from one end to the other
• Ear plates (lugs): plates welded to each end of the joint that the rods pass through
• Hex nuts: positioned on the rods based on the movement at the lugs

Tie Rod, Limit Rod, or Control Rod?

In the field, the terms tie rod, limit rod, and control rod are often used interchangeably, and they can refer to hardware that looks nearly identical: a threaded rod passing through lugs, held by hex nuts. They are, however, technically different components, and the distinction matters when specifying an expansion joint.

A tie rod continuously restrains the full pressure thrust of the system during normal operation and permits only lateral deflection. A limit rod allows the joint to move within its designed range, limiting axial expansion or compression, and restrains the pressure thrust only in the event of an anchor failure. A control rod is used on universal expansion joints to limit and control the movement of the assembly. The correct term depends on the function the rod performs, and each is custom-designed based on the pressure and load forces of the specific application.

The clearance is the deliberate gap left between the hex nut and the lug. That gap allows the bellows to move and compress without damaging the equipment. Within it, the joint moves freely as the pipe expands and contracts, and the gap defines the limit of that movement.

–>

How Is the Gap Calculated?

The clearance is not a standard dimension. It is unique to each expansion joint design and is determined by the engineering team based on the movement requirements of the application.

Single expansion joints – For a single expansion joint, the engineering team divides the total travel requirement in half and sets that value as the clearance on each side of the lug. For example, if a joint is designed for 2 inches of total axial travel, that travel is split across the two sides: a 1-inch gap is set between the nut and the lug on one side, and a 1-inch gap on the other. The joint is free to move within these clearances, and the nuts stop it from traveling beyond them.

Universal expansion joints – A universal expansion joint consists of two bellows separated by a center pipe section, or spool, and is designed to absorb large amounts of lateral deflection. Because the movement is distributed across two bellows, the clearance cannot be set by simply dividing the travel in half. The engineering team determines the clearance dimensions specifically for each design.

Note – These principles apply to all expansion joint types. Including metallic, fabric, and rubber expansion joints.

What Happens When the Gap Is Set Wrong?

Improper installation in either direction puts the system at risk.

• When the Gap Is Closed (Nuts Tightened Against the Lugs)

Tightening the nuts against the lugs prevents the expansion joint from moving axially. The joint can no longer absorb the expansion and contraction of the pipe, and the thermal stress is transferred to an anchor or equipment in the piping system, which may cause a failure on either of those structures.

• When the Clearance Exceeds the Design Specification

Excessive clearance allows the expansion joint to move beyond its designed travel. If the joint is not designed to handle that level of movement, this can lead to premature failure of the unit.

Set in the Shop, Guided by the Drawings

Every assembly is fabricated and assembled at our facility before shipping. Customers generally do not need to perform any field welding on these assemblies. Where field work is required, we provide the drawings needed to guide correct installation.

Takeaway

The clearance gap between the nuts and the lugs is part of the design. It allows the expansion joint to move as intended and defines the limit of that movement. The nut positions on a new assembly are set to the design dimensions and should not be adjusted during installation or maintenance.

If you have questions about the correct clearance for your application, contact US Bellows or schedule a meeting with an engineer.
