Universal Pipe Expansion Joint

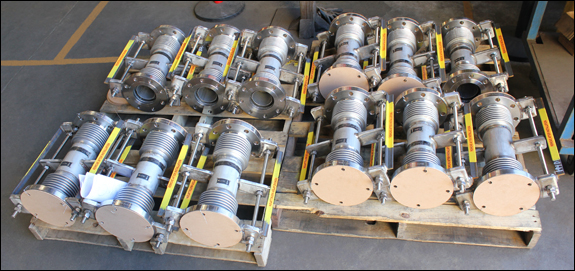

8" Dia. Tied Universal Expansion Joint Designed for a Pipeline in Colorado

Stainless Steel Universal Expansion Joints Designed for a Pipeline in Taiwan

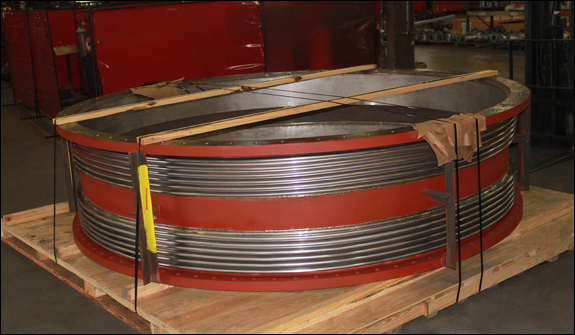

136" Dia. Universal Expansion Joint for a Thermal Power Plant

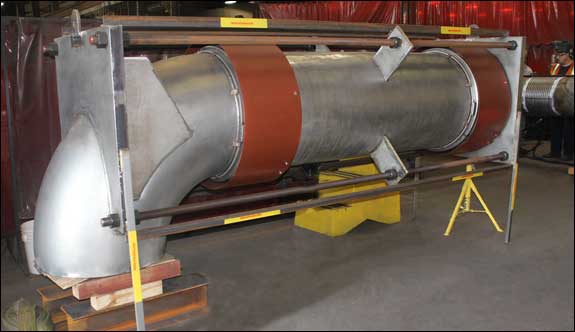

134" Tied Universal Elbow Expansion Joint designed for a Chemical Plant in Arkansas

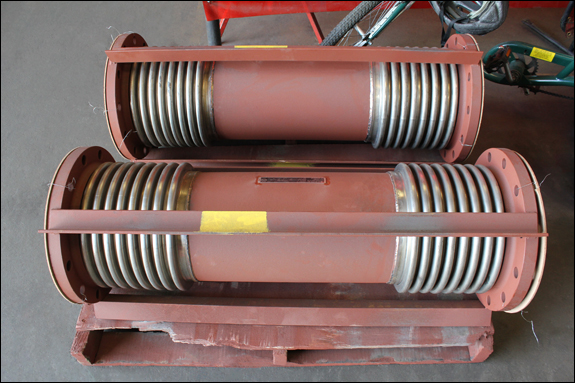

10" Dia. Universal Expansion Joints for HVAC Service in California

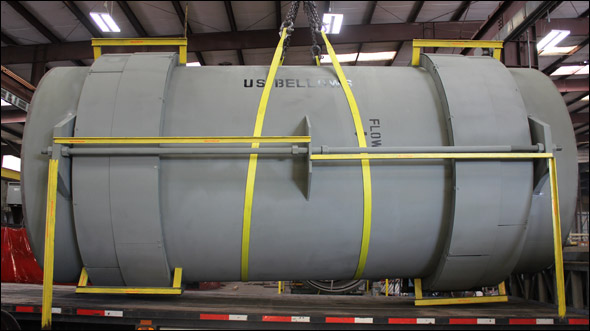

102" Dia. Tied Universal Expansion Joint for a Power Plant in Canada

Overview

By using flanged expansion bellows, facilities can safely absorb axial and lateral movements. For systems requiring large lateral offsets, a universal expansion joint is often the preferred solution. These components ensure the system operates safely under pressure. They effectively protect sensitive equipment from mechanical stress.

A flanged expansion joint provides a secure connection to existing piping infrastructure. This design allows for easy installation and removal during routine maintenance. Piping engineers frequently specify HVAC expansion joints to accommodate thermal growth in cooling and heating systems.

Data Tables

3, 3.5, 4 Inch Universal Expansion Joints
5, 6, 8 Inch Universal Expansion Joints
10, 12, 14 inch Universal Expansion Joints
16, 18, 20 Inch Universal Expansion Joints
22, 24, 26 Inch Universal Expansion Joints
28, 30, 32 Inch Universal Expansion Joints
34, 36, 38 Inch Universal Expansion Joints
40, 42 Inch Universal Expansion Joints
44, 46, 48 Inch Universal Expansion Joints
50 Through 72 Inch Universal Expansion Joints
84 Through 144 Inch Universal Expansion Joints

Technical Information

Installation & Maintenance (Metallic Expansion Joints)
Metal Bellows Material
Types of Metallic Bellows Deflections
Bellows Expansion Joint Loads
How to Look for Signs of Expansion Joint Failure
View more Technical Information

FAQs

Q: What types of movement is a universal expansion joint designed to absorb?

A: A universal expansion joint is primarily designed to absorb large amounts of lateral deflection in one or multiple planes. Because it consists of two separate bellows separated by a center pipe spool, and depending on the tie-rod configuration, it can also accommodate angular rotation, and in the case of limit or control rods, it can allow for axial movement.

Q: How does the length of the center spool affect the joint’s lateral movement capacity?

A: The center pipe spool connects the two individual bellows within the assembly. Increasing the length of this center spool increases the joint’s capacity to absorb lateral offset and allows the system to handle greater structural displacement without overstressing the corrugations.

Other Frequently Asked Questions:

Why do the universal expansion joints need to be tied?

Where should I use a universal expansion joint in piping?

How long should a universal expansion joint be?

How do you decide on the number of tie-rods in a universal expansion joint?

View more FAQS

Case Studies

6/6/23: 13 Foot Universal Expansion Joint Custom Designed with Incoloy Bellows and Manufactured in the USA for Service in a Chemical Plant

11/22/21: Universal Elbow Expansion Joints for Glycol Heat Transfer Piping

11/2/14: 60″ Dia. Universal Expansion Joint Designed for a Chemical Company

2/11/09: 20″ Tied Universal Expansion Joint

8/16/06: Tied Universal Expansion Joints for an Engineering and Construction Company

More Reading

Request A Quote

Universal Expansion Joints

The universal pipe expansion joint consists of two bellows separated by a pipe section or spool. The primary purpose of this arrangement is to have a unit which will accept large amounts of lateral deflection. The amount of lateral deflection they can accept is a function of the amount of angulation each bellows can absorb and the distance between the bellows. For a given bellows element, the amount of lateral deflection capability can be increased or decreased by simply changing the length of the center spool. There are three standard overall lengths shown with their lateral movement capability. If the piping problem requires greater capability, then the overall length can be increased to suit. Since deflections are usually the result of piping thermal expansion, and universal expansion joints are usually long, our units are designed so that the thermal expansion of the entire unit's length is accepted as compression by the two bellows elements. In this way, the overall length of the unit does not change when the piping is heated. The standard units in this catalog have all been designed to accept the thermal expansion of their length when the temperature is up to the design temperature shown.

Universal Expansion Joints - Data Tables by Nominal Diameter
Video
Request A Quote

3, 3.5, 4 Inch Universal Expansion Joints
5 inch, 6 inch, 8 inch Nominal Diameter
10 inch, 12 inch, 14 inch Nominal Diameter
16 inch, 18 inch, 20 inch Nominal Diameter
22 inch, 24 inch, 26 inch Nominal Diameter
28 inch, 30 inch, 32 inch Nominal Diameter
34 inch, 36 inch, 38 inch Nominal Diameter
40 inch, 42 inch Nominal Diameter
44 inch, 46 inch, 48 inch Nominal Diameter
50 inch Through 72 inch Nominal Diameter
84 inch Through 144 inch Nominal Diameter

3 inch, 3.5 inch, 4 inch Nominal Diameter

Flanged Universal Expansion Joint

View PDF

Notes:

Rated life cycle at 650°F is 3000 cycles for any one tabulated movement.
To combine axial, lateral and angular movements, please refer to the how to order section.
To increase cycle life or movements, please refer to graph on cycle life.
Rated bellows extension is equal to rated axial movement. Provided bellows is precompressed the amount of design extension. Installed overall length will decrease by the amount of precompression.
Tabulated values are for tied joints, with butt weld ends. Performance of joints with flanged ends, and unrestrained joints, will exceed tabulated values.
Maximum test pressure: 1.5 X rated working pressure.
Bellows rated for 650°F: See catalog flange data for appropriate flange temperature/pressure ratings.
Pressure thrust load applied to adjacent pipe anchors/equipment when unrestrained expansion joints are used.

Size	Pressure	Non-concurrant Movements/Spring Rates
		Lateral Movement/Spring Rates						Axial
		24	in. Overall Length	36	in. Overall Length	48	in. Overall Length	Movement	Spring Rate

		610	mm Overall Length	914	mm Overall Length	1219	mm Overall Length

		Movement	Spring Rate	Movement	Spring Rate	Movement	Spring Rate

	PSIG	in.	lb./in.	in.	lb./in.	in.	lb./in.	in.	lb./in.
	kg/cm 2	mm	kg/mm	mm	kg/mm	mm	kg/mm	mm	kg/mm
3	75	3.17	16	8.93	3	14.93	1	2.05	152
	5.3	81	0.3	227	0.05	379	0.02	52	3
	500	1.33	91	3.39	18	5.49	7	0.71	1010
	35.1	34	1.6	86	0.32	139	0.13	18	18
3.5	75	2.81	23	7.82	4	13.03	2	2	175
	5.3	71	0.4	199	0.07	331	0.04	51	3
	500	1.1	151	2.77	30	4.48	12	0.65	1355
	35.1	28	2.7	70	0.54	114	0.21	17	24
4	50	3.43	19	9.41	3	15.61	1	2.71	111
	3.5	87	0.3	239	0.05	396	0.02	69	2
	275	1.44	106	3.53	22	5.66	9	0.92	775
	19.3	37	1.9	90	0.39	144	0.16	23	14

Materials
Bellows: A240-T304. Alternate materials available upon request. Refer to the materials section.
Flanges: ASTM A105.
50-75 PSIG Series: 150 lb. ANSI B16.5 RPSO.
275-500 PSIG Series: 300 lb. ANSI B16.5 RPSO
Plate flanges and angle flanges available for low pressure systems.
Pipe: ASTM A-53/A-106.
50-75 PSIG Series: Std. Wt. Pipe.
275-500 PSIG Series: Std. Wt. Pipe
Liners: A240-T304.
Covers: Carbon steel.
Tie Rods, Hinges, Gimbals: Carbon steel

5 inch, 6 inch, 8 inch Nominal Diameter

Flanged Universal Exapnsion Joint

View PDF

Notes:

Rated life cycle at 650°F is 3000 cycles for any one tabulated movement.
To combine axial, lateral and angular movements, please refer to the how to order section.
To increase cycle life or movements, please refer to graph on cycle life.
Rated bellows extension is equal to rated axial movement. Provided bellows is precompressed the amount of design extension. Installed overall length will decrease by the amount of precompression.
Tabulated values are for tied joints, with butt weld ends. Performance of joints with flanged ends, and unrestrained joints, will exceed tabulated values.
Maximum test pressure: 1.5 X rated working pressure.
Bellows rated for 650°F: See catalog flange data for appropriate flange temperature/pressure ratings.
Pressure thrust load applied to adjacent pipe anchors/equipment when unrestrained expansion joints are used.

Size	Pressure	Non-concurrant Movements/ Spring Rates
		Lateral Movement/Spring Rates						Axial
		30	in. OverallLength	42	in. OverallLength	54	in. OverallLength	Movement	Spring Rate

		762	mm OverallLength	1067	mm	1372	mm OverallLength

		Movement	Spring Rate	Movement	Spring Rate	Movement	Spring Rate

	PSIG	in.	lb./in.	in.	lb./in.	in.	lb./in.	in.	lb./in.
	kg/cm 2	mm	kg/mm	mm	kg/mm	mm	kg/mm	mm	kg/mm
5	75	4.96	12	9.61	4	14.33	2	2.47	139
	5.3	126	0.2	244	0.07	364	0.04	63	2
	275	1.78	87	3.26	29	4.75	14	0.77	1160
	19.3	45	1.6	83	0.52	121	0.25	20	21
6	70	3.59	22	7.44	6	11.34	3	2.43	143
	4.9	91	0.4	189	0.11	288	0.05	62	3
	200	2.01	104	4.17	29	6.36	13	1.36	665
	14.1	51	1.9	106	0.52	162	0.23	35	12
	500	0.65	1017	1.38	259	2.12	115	0.46	5473
	35.1	17	18.2	35	4.63	54	2.06	12	98
8	45	3.62	40	8.31	10	13.19	4	3.91	126
	3.2	92	0.7	211	0.18	335	0.07	99	2
	200	1.89	186	4.34	46	6.89	20	2.05	583
	14.1	48	3.3	110	0.82	175	0.36	52	10
	400	0.71	1576	1.66	364	2.64	157	0.77	4314
	28.1	18	28.2	42	6.51	67	2.81	20	77

Materials
Bellows: A240-T304. Alternate materials available upon request. Refer to the materials section.
Flanges: ASTM A105.
40-75 PSIG Series: 150 lb. ANSI B16.5 RFSO.
200-275 PSIG Series: 150 lb. ANSI B16.5 RFSO
400-500 PSIG Series: 300 lb. ANSI B16.5 RFSO
Plate flanges and angle flanges available for low pressure systems.
Pipe: ASTM A-53/A-106.
40-75 PSIG Series: Std. Wt. Pipe.
200-275 PSIG Series: Std. Wt. Pipe.
400-500 PSIG Series: Std. Wt. Pipe.
Liners: A240-T304.
Covers: Carbon steel.

10 inch, 12 inch, 14 inch Nominal Diameter

Flanged Universal Expansion Joint

View PDF

Notes:

Rated life cycle at 650°F is 3000 cycles for any one tabulated movement.
To combine axial, lateral and angular movements, please refer to the how to order section.
To increase cycle life or movements, please refer to graph on cycle life.
Rated bellows extension is equal to rated axial movement. Provided bellows is precompressed the amount of design extension. Installed overall length will decrease by the amount of precompression.
Tabulated values are for tied joints, with butt weld ends. Performance of joints with flanged ends, and unrestrained joints, will exceed tabulated values.
Maximum test pressure: 1.5 X rated working pressure.
Bellows rated for 650°F: See catalog flange data for appropriate flange temperature/pressure ratings.
Pressure thrust load applied to adjacent pipe anchors/equipment when unrestrained expansion joints are used.

Size	Pressure	Non-concurrant Movements/ Spring Rates
		Lateral Movement/Spring Rates						Axial
		24	in. Overall Length	36	in. Overall Length	48	in. Overall Length	Movement	Spring Rate

		610	mm Overall Length	914	mm Overall Length	1219	mm Overall Length

		Movement	Spring Rate	Movement	Spring Rate	Movement	Spring Rate
	PSIG	in.	lb./in.	in.	lb./in.	in.	lb./in.	in.	lb./in.
	kg/cm 2	mm	kg/mm	mm	kg/mm	mm	kg/mm	mm	kg/mm
10	45	6.26	49	11.8	18	17.63	9	6.08	213
	3.2	159	0.9	300	0.32	448	0.16	154	4
	260	2.72	256	5.04	92	7.45	47	2.48	1127
	18.3	69	4.6	128	1.65	189	0.84	63	20
12	45	5.07	80	10.01	27	15.23	13	6.4	208
	3.2	129	1.4	254	0.48	387	0.23	163	4
	200	2.41	369	4.67	123	7.02	60	2.85	976
	14.1	61	6.6	119	2.2	178	1.07	72	17
14	50	4.8	95	9.24	33	13.9	16	6.23	229
	3.5	122	1.7	235	0.59	353	0.29	158	4
	200	2.04	548	3.92	184	5.87	91	2.56	1255
	14.1	52	9.8	100	3.29	149	1.63	65	22

Materials
Bellows: A240-T304. Alternate materials available upon request. Refer to the materials section.
Flanges: ASTM A105.
45-50 PSIG Series: 150 lb. ANSI B16.5 RPSO.
200-260 PSIG Series: 300 lb. ANSI B16.5 RPSO
Plate flanges and angle flanges available for low pressure systems.
Pipe: ASTM A-53/A-106.
45-50 PSIG Series: Std. Wt. Pipe.
200-260 PSIG Series: Std. Wt. Pipe
Liners: A240-T304.
Covers: Carbon steel.
Tie Rods, Hinges, Gimbals: Carbon Steel

16 inch, 18 inch, 20 inch Nominal Diameter

Flanged Universal Expansion Joint

View PDF

Notes:

Rated life cycle at 650°F is 3000 cycles for any one tabulated movement.
To combine axial, lateral and angular movements, please refer to the how to order section.
To increase cycle life or movements, please refer to graph on cycle life.
Rated bellows extension is equal to rated axial movement. Provided bellows is precompressed the amount of design extension. Installed overall length will decrease by the amount of precompression.
Tabulated values are for tied joints, with butt weld ends. Performance of joints with flanged ends, and unrestrained joints, will exceed tabulated values.
Maximum test pressure: 1.5 X rated working pressure.
Bellows rated for 650°F: See catalog flange data for appropriate flange temperature/pressure ratings.
Pressure thrust load applied to adjacent pipe anchors/equipment when unrestrained expansion joints are used.

Size	Pressure	Non-concurrant Movements/ Spring Rates
		Lateral Movement/Spring Rates						Axial
		48	in. Overall Length	60	in. Overall Length	72	in. Overall Length	Movement	Spring Rate

		1219	mm Overall Length	1524	mm Overall Length	1829	mm Overall Length

		Movement	Spring Rate	Movement	Spring Rate	Movement	Spring Rate

	PSIG	in.	lb./in.	in.	lb./in.	in.	lb./in.	in.	lb./in.
	kg/cm 2	mm	kg/mm	mm	kg/mm	mm	kg/mm	mm	kg/mm
16	35	6.73	70	11.6	29	16.7	16	7.75	211
	2.5	171	1.3	295	0.52	424	0.29	197	4
	200	3.11	339	5.06	149	7.05	83	2.96	1235
	14.1	79	6.1	129	2.67	179	1.49	75	22
	400	2.45	843	3.98	363	5.54	200	2.3	2894
	28.1	62	15.1	101	6.5	141	3.58	58	52
18	40	5.91	98	10.18	41	14.66	22	7.59	238
	2.8	150	1.8	259	0.73	372	0.39	193	4
	200	2.48	550	4.16	230	5.88	125	2.85	1394
	14.1	63	9.8	106	4.12	149	2.24	72	25
	400	1.97	1365	3.16	595	4.37	331	1.98	3919
	28.1	50	24.4	80	10.65	111	5.92	50	70
20	45	5.24	133	9.03	55	12.99	30	7.43	265
	3.2	133	2.4	229	0.98	330	0.54	189	5
	200	2.26	725	3.75	306	5.27	167	2.77	1533
	14.1	57	13	95	5.48	134	2.99	70	28
	400	1.59	2120	2.62	881	3.66	479	1.88	4365
	28.1	40	37.9	67	15.77	93	8.57	48	78

Materials
Bellows: A240-T304. Alternate materials available upon request. Refer to the materials section.
Flanges: ASTM A105.
35-45 PSIG Series: 125 lb. Lt/Wt FFSO.
200 PSIG Series: 150 lb. ANSI B16.5 RFSO
400 PSIG Series: 300 lb. ANSI B16.5 RFSO
Plate flanges and angle flanges available for low pressure systems.
Pipe: ASTM A-53/A-106.
35-45 PSIG Series: Std. Wt. Pipe.
200 PSIG Series: Std. Wt. Pipe.
400 PSIG Series: Std. Wt. Pipe.
Liners: A240-T304.
Covers: Carbon steel.
Tie Rods, Hinges, Gimbals: Carbon steel

22 inch, 24 inch, 26 inch Nominal Diameter

Flanged Universal Expansion Joint

View PDF

Notes:

Rated life cycle at 650°F is 3000 cycles for any one tabulated movement.
To combine axial, lateral and angular movements, please refer to the how to order section.
To increase cycle life or movements, please refer to graph on cycle life.
Rated bellows extension is equal to rated axial movement. Provided bellows is precompressed the amount of design extension. Installed overall length will decrease by the amount of precompression.
Tabulated values are for tied joints, with butt weld ends. Performance of joints with flanged ends, and unrestrained joints, will exceed tabulated values.
Maximum test pressure: 1.5 X rated working pressure.
Bellows rated for 650°F: See catalog flange data for appropriate flange temperature/pressure ratings.
Pressure thrust load applied to adjacent pipe anchors/equipment when unrestrained expansion joints are used.

Size	Pressure	Non-concurrant Movements/Spring Rates
		Lateral Movement/Spring Rates						Axial
		48	in. Overall Length	60	in. Overall Length	72	in. Overall Length	Movement	Spring Rate
		1219	mm Overall Length	1524	mm Overall Length	1829	mm Overall Length
		Movement	Spring Rate	Movement	Spring Rate	Movement	Spring Rate
	PSIG	in.	lb./in.	in.	lb./in.	in.	lb./in.	in.	lb./in.
	kg/cm²	mm	kg/mm	mm	kg/mm	mm	kg/mm	mm	kg/mm
22	45	5.28	137	8.88	58	12.62	32	7.62	243
	3.2	134	2.5	226	1.04	321	0.57	194	4
	165	2.24	811	3.66	347	5.12	191	2.9	1497
	11.6	57	14.5	93	6.21	130	3.42	74	27
	350	1.48	2536	2.40	1069	3.33	585	1.84	4506
	24.6	38	45.4	61	19.13	85	10.47	47	81
24	50	4.74	177	7.98	75	11.34	41	7.43	266
	3.5	120	3.2	203	1.34	288	0.73	189	5
	160	2.06	1024	3.36	441	4.68	243	2.85	1636
	11.2	52	18.3	85	7.89	119	4.35	72	29
	350	1.34	3163	2.15	1347	2.97	741	1.75	4925
	24.6	34	56.6	55	24.11	75	13.26	44	88
26	50	3.88	268	6.83	107	9.91	57	7.37	289
	3.5	99	4.8	173	1.91	252	1.02	187	5
	165	1.87	1450	3.41	544	5.02	281	3.85	1332
	11.6	47	25.9	87	9.74	128	5.03	98	24
	335	1.55	3635	2.99	1252	4.52	622	3.67	2672
	23.5	39	65.1	76	22.41	115	11.13	93	48

Materials
Bellows: A240-T304. Alternate materials available upon request. Refer to the materials section.
Flanges: ASTM A105.
45-50 PSIG Series: 125 lb. Lt/Wt FFSO
160-165 PSIG Series: 150 lb. ANSI B16.5 RFSO
335-350 PSIG Series: 300 lb. ANSI B16.5 RFSO
Plate flanges and angle flanges available for low pressure systems.
Pipe: ASTM A-53/A-106/A-285-C
45-50 PSIG Series: Std. Wt. Pipe/0.375-inch wall.
160-165 PSIG Series: Std. Wt. Pipe/0.375-inch wall.
335-350 PSIG Series: 0.500-inch wall.
Liners: A240-T304.
Covers: Carbon steel.
Tie Rods, Hinges, Gimbals: Carbon steel

28 inch, 30 inch, 32 inch Nominal Diameter

Flanged Universal Expansion Joint

View PDF

Notes:

Rated life cycle at 650°F is 3000 cycles for any one tabulated movement.
To combine axial, lateral and angular movements, please refer to the how to order section.
To increase cycle life or movements, please refer to graph on cycle life.
Rated bellows extension is equal to rated axial movement. Provided bellows is precompressed the amount of design extension. Installed overall length will decrease by the amount of precompression.
Tabulated values are for tied joints, with butt weld ends. Performance of joints with flanged ends, and unrestrained joints, will exceed tabulated values.
Maximum test pressure: 1.5 X rated working pressure.
Bellows rated for 650°F: See catalog flange data for appropriate flange temperature/pressure ratings.
Pressure thrust load applied to adjacent pipe anchors/equipment when unrestrained expansion joints are used.

Size	Pressure	Non-concurrant Movements/Spring Rates
		Lateral Movement/Spring Rates						Axial
		48	in. Overall Length	60	in. Overall Length	72	in. Overall Length	Movement	Spring Rate

		1219	mm Overall Length	1524	mm Overall Length	1829	mm Overall Length

		Movement	Spring Rate	Movement	Spring Rate	Movement	Spring Rate

	PSIG	in.	lb./in.	in.	lb./in.	in.	lb./in.	in.	lb./in.
	kg/cm 2	mm	kg/mm	mm	kg/mm	mm	kg/mm	mm	kg/mm
28	50	3.61	333	6.36	132	9.22	70	7.36	311
	3.5	92	6	162	2.36	234	1.25	187	6
	160	1.74	1801	3.17	675	4.67	348	3.85	1437
	11.2	44	32.2	81	12.08	119	6.23	98	26
	315	1.45	4512	2.82	1554	4.25	772	3.71	2881
	22.1	37	80.7	72	27.81	108	13.82	94	52
30	50	3.65	316	6.41	126	9.3	67	7.96	257
	3.5	93	5.7	163	2.25	236	1.2	202	5
	135	1.91	1708	3.48	640	5.13	330	4.53	1185
	9.5	49	30.6	88	11.45	130	5.91	115	21
	290	1.55	4276	3	1473	4.52	731	4.23	2376
	20.4	39	76.5	76	26.36	115	13.08	107	43
32	50	3.43	382	6.03	152	8.75	80	7.96	274
	3.5	87	6.8	153	2.72	222	1.43	202	5
	135	1.79	2062	3.27	773	4.82	399	4.53	1266
	9.5	45	36.5	83	13.83	122	7.14	115	23
	290	1.45	5163	2.81	1778	4.25	883	4.23	2537
	20.4	37	92.4	71	31.82	108	15.8	107	45

Materials
Bellows: A240-T304. Alternate materials available upon request. Refer to the materials section.
Flanges: ASTM A105.
50 PSIG Series: 125 lb Lt/Wt FFSO.
For 135-160 PSIG Series and 290-315 PSIG Series: Customer to specify actual flanges required.
Plate flanges and angle flanges available for low pressure systems.
Pipe: ASTM A-53/APJ-5L/A-285-C.
50 PSIG Series: 0.375-inch wall.
135-160 PSIG Series: 0.375-inch wall.
290-315 PSIG Series: 0.500-inch wall.
Liners: A240-T304.
Covers: Carbon steel.
Tie Rods, Hinges, Gimbals: Carbon steel

34 inch, 36 inch, 38 inch Nominal Diameter

Flanged Universal Expasnion Joint

View PDF

Notes:

Rated life cycle at 650°F is 3000 cycles for any one tabulated movement.
To combine axial, lateral and angular movements, please refer to the how to order section.
To increase cycle life or movements, please refer to graph on cycle life.
Rated bellows extension is equal to rated axial movement. Provided bellows is precompressed the amount of design extension. Installed overall length will decrease by the amount of precompression.
Tabulated values are for tied joints, with butt weld ends. Performance of joints with flanged ends, and unrestrained joints, will exceed tabulated values.
Maximum test pressure: 1.5 X rated working pressure.
Bellows rated for 650°F: See catalog flange data for appropriate flange temperature/pressure ratings.
Pressure thrust load applied to adjacent pipe anchors/equipment when unrestrained expansion joints are used.

Size	Pressure	Non-concurrant Movements/Spring Rates
		Llateral Movement/Spring Rates						Axial
		54	in. Overall Length	66	in. Overall Length	78	in. Overall Length	Movement	Spring Rate

		1372	mm Overall Length	1676	mm Overall Length	1981	mm Overall Length

		Movement	Spring Rate	Movement	Spring Rate	Movement	Spring Rate

	PSIG	in.	lb./in.	in.	lb./in.	in.	lb./in.	in.	lb./in.
	kg/cm 2	mm	kg/mm	mm	kg/mm	mm	kg/mm	mm	kg/mm
34	50	4.44	273	6.97	129	9.56	74	7.96	292
	3.5	113	4.9	177	2.31	243	1.32	202	5
	135	2.13	1683	3.54	723	5.01	398	4.5	1346
	9.5	54	30.1	90	12.94	127	7.12	114	24
	275	1.58	4951	2.89	1856	4.25	958	4.24	2699
	19.3	40	88.6	73	33.21	108	17.14	108	48
36	50	4.21	323	6.59	152	9.05	88	7.96	309
	3.5	107	5.8	167	2.72	230	1.57	202	6
	135	2.02	1991	3.35	854	4.74	471	4.49	1427
	9.5	51	35.6	85	15.28	120	8.43	114	26
	250	1.52	5853	2.78	2194	4.09	1132	4.31	2860
	17.6	39	104.7	71	39.26	104	20.26	109	51
38	50	3.99	379	6.26	179	8.59	103	7.96	327
	3.5	101	6.8	159	3.2	218	1.84	202	6
	130	1.93	2333	3.21	1001	4.53	552	4.52	1508
	9.1	49	41.8	82	17.91	115	9.88	115	27
	250	1.44	6859	2.64	2571	3.88	1327	4.3	3021
	17.6	37	122.7	67	46.01	99	23.75	109	54

Materials
Bellows: A240-T304. Alternate materials available upon request. Refer to the materials section.
Flanges: ASTM A105.
50 PSIG Series: 125 lb. Lt/Wt FFSO.
For 130-135 PSIG Series and 250-275 PSIG Series: Customer to specify actual flanges required.
Plate flanges and angle flanges available for low pressure systems.
Pipe: ASTM A-285-C.
50 PSIG Series: 0.375-inch wall
130-135 PSIG Series: 0.375-inch wall.
250-275 PSIG Series: 0.500-inch wall.
Liners: A240-T304.
Covers: Carbon steel.
Tie Rods, Hinges, Gimbals: Carbon steel

40 Inch, 42 inch Nominal Diameter

Flanged Universal Expansion Joint

View PDF

Notes:

Rated life cycle at 650°F is 3000 cycles for any one tabulated movement.
To combine axial, lateral and angular movements, please refer to the how to order section
To increase cycle life or movements, please refer to graph on cycle life.
Rated bellows extension is equal to rated axial movement. Provided bellows is precompressed the amount of design extension. Installed overall length will decrease by the amount of precompression.
Tabulated values are for tied joints, with butt weld ends. Performance of joints with flanged ends, and unrestrained joints, will exceed tabulated values.
Maximum test pressure: 1.5 X rated working pressure.
Bellows rated for 650°F: See catalog flange data for appropriate flange temperature/pressure ratings.
Pressure thrust load applied to adjacent pipe anchors/equipment when unrestrained expansion joints are used.

Size	Pressure	Non-concurrant Movements/Spring Rates
		Lateral Movement/Spring Rates						Axial
		54	in. Overall Length	66	in. Overall Length	78	in. Overall Length	Movement	Spring Rate

		1372	mm Overall Length	1676	mm Overall Length	1981	mm Overall Length

		Movement	Spring Rate	Movement	Spring Rate	Movement	Spring Rate
	PSIG	in.	lb./in.	in.	lb./in.	in.	lb./in.	in.	lb./in.
	kg/cm 2	mm	kg/mm	mm	kg/mm	mm	kg/mm	mm	kg/mm
40	50	3.45	515	5.59	231	7.8	130	7.96	344
	3.5	88	9.2	142	4.13	198	2.33	202	6
	120	1.66	3254	2.88	1312	4.15	700	4.58	1588
	8.4	42	58.2	73	23.48	105	12.53	116	28
	225	1.21	9928	2.35	3419	3.55	1698	4.37	3183
	15.8	31	177.7	60	61.18	90	30.39	111	57
42	50	3.29	595	5.34	267	7.45	150	7.96	362
	3.5	84	10.6	136	4.78	189	2.68	202	6
	115	1.59	3756	2.77	1514	3.99	809	4.61	1669
	8.1	40	67.2	70	27.09	101	14.48	117	30
	225	1.16	11459	2.24	3946	3.39	1960	4.37	3344
	15.8	29	205.1	57	70.62	86	35.08	111	60

Materials
Bellows: A240-T304. Alternate materials available upon request. Refer to the materials section.
Flanges: ASTM A105.
50 PSIG Series: 125 lb. Lt/Wt FFSO.
For 115-120 PSIG Series and 225 PSIG Series: Customer to specify actual flanges required.
Plate flanges and angle flanges available for low pressure systems.
Pipe: ASTM A-53/A-106.
50-75 PSIG Series: Std. Wt. Pipe.
275-500 PSIG Series: Std. Wt. Pipe
Liners: A240-T304.
Covers: Carbon steel.
Tie Rods, Hinges, Gimbals: Carbon steel

44 inch, 46 inch, 48 inch Nominal Diameter

Flanged Universal Expansion Joint

View PDF

Notes:

Rated life cycle at 650°F is 3000 cycles for any one tabulated movement.
To combine axial, lateral and angular movements, please refer to the how to order section.
To increase cycle life or movements, please refer to graph on cycle life.
Rated bellows extension is equal to rated axial movement. Provided bellows is precompressed the amount of design extension. Installed overall length will decrease by the amount of precompression.
Tabulated values are for tied joints, with butt weld ends. Performance of joints with flanged ends, and unrestrained joints, will exceed tabulated values.
Maximum test pressure: 1.5 X rated working pressure.
Bellows rated for 650°F: See catalog flange data for appropriate flange temperature/pressure ratings.
Pressure thrust load applied to adjacent pipe anchors/equipment when unrestrained expansion joints are used.

Size	Pressure	Non-concurrant Movements/Spring Rates
		Lateral Movement/Spring Rates						Axial
		48	in. Overall Length	60	in. Overall Length	72	in. Overall Length	Movement	Spring Rate

		1219	mm Overall Length	1524	mm Overall Length	1829	mm Overall Length

		Movement	Spring Rate	Movement	Spring Rate	Movement	Spring Rate
	PSIG	in.	lb./in.	in.	lb./in.	in.	lb./in.	in.	lb./in.
	kg/cm 2	mm	kg/mm	mm	kg/mm	mm	kg/mm	mm	kg/mm
44	50	2.42	1008	4.14	412	5.93	221	7.02	427
	3.5	61	18	105	7.37	151	3.95	178	8
	115	1.2	6238	2.28	2184	3.41	1094	4.5	1750
	8.1	30	111.6	58	39.08	87	19.58	114	31
46	35	2.3	729	3.95	298	5.65	160	7.02	281
	2.5	58	13	100	5.33	144	2.86	178	5
	95	1.44	4513	2.75	1581	4.11	792	5.69	1150
	6.7	37	80.8	70	28.29	104	14.17	145	21
48	35	2.16	907	3.65	375	5.19	203	6.58	335
	2.5	55	16.2	93	6.71	132	3.63	167	6
	95	1.3	5572	2.44	1984	3.62	1002	5.09	1372
	6.7	33	99.7	62	35.5	92	17.93	129	25

Materials
Bellows: A240-T304. Alternate materials available upon request. Refer to the materials section.
Flanges: ASTM A105.
35-50 PSIG Series: 125 lb. Lt/Wt FFSO.
95-115 PSIG Series: Customer to specify actual flanges required.
Plate flanges and angle flanges available for low pressure systems.
Pipe: ASTM A-285-C
35-50 PSIG Series: 0.375-inch wall
95-115 PSIG Series: 0.375-inch wall.
Liners: A240-T304.
Covers: Carbon steel.
Tie Rods, Hinges, Gimbals: Carbon steel

50 inch Through 72 inch Nominal Diameter

Flanged Universal Expansion Joint

View PDF

Notes:

Rated life cycle at 650°F is 3000 cycles for any one tabulated movement.
To combine axial, lateral and angular movements, please refer to the how to order section
To increase cycle life or movements, please refer to graph on cycle life.
Rated bellows extension is equal to rated axial movement. Provided bellows is precompressed the amount of design extension. Installed overall length will decrease by the amount of precompression.
Tabulated values are for tied joints, with butt weld ends. Performance of joints with flanged ends, and unrestrained joints, will exceed tabulated values.
Maximum test pressure: 1.5 X rated working pressure.
Bellows rated for 650°F: See catalog flange data for appropriate flange temperature/pressure ratings.
Pressure thrust load applied to adjacent pipe anchors/equipment when unrestrained expansion joints are used.

Size	Pressure	Non-concurrant Movements/Spring Rates
		Lateral Movement/Spring Rates						Axial
		50	in. Overall Length	66	in. Overall Length	78	in. Overall Length	Movement	Spring Rate
		50	in. Overall Length	66	in. Overall Length	78	in. Overall Length
		1270	mm Overall Length	1676	mm Overall Length	1981	mm Overall Length
		1270	mm Overall Length	1676	mm Overall Length	1981	mm Overall Length
		Movement	Spring Rate	Movement	Spring Rate	Movement	Spring Rate
		Movement	Spring Rate	Movement	Spring Rate	Movement	Spring Rate
	PSIG	in.	lb./in.	in.	lb./in.	in.	lb./in.	in.	lb./in.
	kg/cm 2	mm	kg/mm	mm	kg/mm	mm	kg/mm	mm	kg/mm
50	75	1.74	3751	2.9	1610	4.1	887	5.4	1393
50	5.3	44	67.1	74	28.81	104	15.87	137	25
52	70	1.69	4209	2.81	1807	3.97	995	5.44	1450
52	4.9	43	75.3	71	32.34	101	17.81	138	26
54	70	1.46	5641	2.53	2274	3.64	1214	5.44	1506
54	4.9	37	100.9	64	40.69	92	21.73	138	27
60	60	1.26	8122	2.21	3205	3.2	1696	5.31	1677
60	4.2	32	145.3	56	57.36	81	30.35	135	30
66	55	1.16	10757	2.03	4245	2.93	2246	5.34	1847
66	3.9	29	192.5	52	75.97	74	40.19	136	33
72	50	1.01	15372	1.82	5845	2.66	3041	5.4	2017
72	3.5	26	275.1	46	104.65	68	54.42	137	36

Materials
Bellows: A240-T304. Alternate materials available upon request. Refer to the materials section.
Flanges: ASTM A105.
50-75 PSIG Series: 125 lb. Lt/Wt FFSO
Plate flanges and angle flanges available for low pressure systems.
Pipe: ASTM A-285-C.
50-75 PSIG Series: 0.375-inch wall.
Liners: A240-T304.
Covers: Carbon steel.
Tie Rods, Hinges, Gimbals: Carbon steel

84 inch Through 144 inch Nominal Diameter

Flanged Universal Expansion Joint

View PDF

Notes:

Rated life cycle at 650°F is 3000 cycles for any one tabulated movement.
To combine axial, lateral and angular movements, please refer to the how to order section.
To increase cycle life or movements, please refer to graph on cycle life.
Rated bellows extension is equal to rated axial movement. Provided bellows is precompressed the amount of design extension. Installed overall length will decrease by the amount of precompression.
Tabulated values are for tied joints, with butt weld ends. Performance of joints with flanged ends, and unrestrained joints, will exceed tabulated values.
Maximum test pressure: 1.5 X rated working pressure.
Bellows rated for 650°F: See catalog flange data for appropriate flange temperature/pressure ratings.
Pressure thrust load applied to adjacent pipe anchors/equipment when unrestrained expansion joints are used.

Size	Pressure	Non-concurrant Movements/Spring Rates
		Llateral Movement/Spring Rates						Axial
		60	in. Overall Length	72	in. Overall Length	84	in. Overall Length	Movement	Spring Rate
		1524	mm Overall Length	1829	mm Overall Length	2134	mm Overall Length
		Movement	Spring Rate	Movement	Spring Rate	Movement	Spring Rate
	PSIG	in.	lb./in.	in.	lb./in.	in.	lb./in.	in.	lb./in.
	kg/cm²	mm	kg/mm	mm	kg/mm	mm	kg/mm	mm	kg/mm
84	45	1.10	17326	1.84	7437	2.59	4096	5.65	2358
	3.2	28	310.1	47	133.09	66	73.30	144	42
96	40	0.97	24772	1.60	10757	2.24	5963	5.45	2699
	2.8	25	443.3	41	192.50	57	106.71	138	48
108	35	0.88	36505	1.46	15669	2.06	8631	5.74	3040
	2.5	22	653.3	37	280.40	52	154.46	146	54
120	30	0.67	65983	1.19	25681	1.74	13488	5.79	3380
	2.1	17	1180.8	30	459.57	44	241.37	147	60
132	25	0.61	87604	1.09	34096	1.59	17908	5.82	3721
	1.8	15	1567.7	28	610.16	40	320.47	148	67
144	25	0.46	156468	0.89	53883	1.34	26764	5.82	4062
	1.8	12	2800.1	23	964.26	34	478.95	148	73

Materials
Bellows: A240-T304. Alternate materials available upon request. Refer to the materials section.
Flanges: ASTM A105.
40-45 PSIG Series: (96″ and 84″ dia) 125 lb Lt/Wt/FFSO
25-30 PSIG Series: (108″ and 144″ dia) customer to specify actual flanges required.
Plate flanges and angle flanges available for low pressure systems.
Pipe: ASTM A-285-C
25-45 PSIG Series: 0.375-inch wall
Liners: A240-T304.
Covers: Carbon steel.
Tie Rods, Hinges, Gimbals: Carbon steel
