These expansion joints have PTFE-lined rubber convolutions with Inconel® 625 liners and stainless steel covers. They measure 10″ I.D. x 5-1/4″ OAL. The expansion joints are designed for 46 psig and temperatures up to 210°F, with 1/2″ axial compression.
Read More

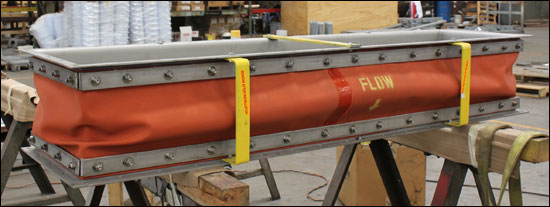

This rectangular fabric expansion joint is designed for high air circulation flow for an air cooling loop duct in a power plant. It measures 81″ L x 18″ W x 16″ face-to-face, and is fabricated with stainless steel angle, frame ends and internal liner. The fabric belt material is reinforced silicone fabric cloth, which can withstand temperatures up to 550°F. This expansion joint is rated for axial movement of +/- 1″ with a 1/2″ lateral offset. A 100% dye-penetrant test on all welds was conducted prior to a quality assurance inspection prior to shipment.
