How do you decide on the number of tie-rods in a universal expansion joint?

The number of tie-rods on a universal expansion joint is calculated according to the amount of pressure thrust that the particular expansion joint will absorb. Low-pressure expansion joints may have two rods, for example, while high-pressure expansion joints may have four or more.

91578c1

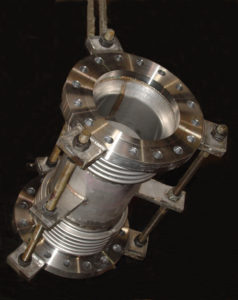

12″ Universal Expansion Joint with Tie Rods
